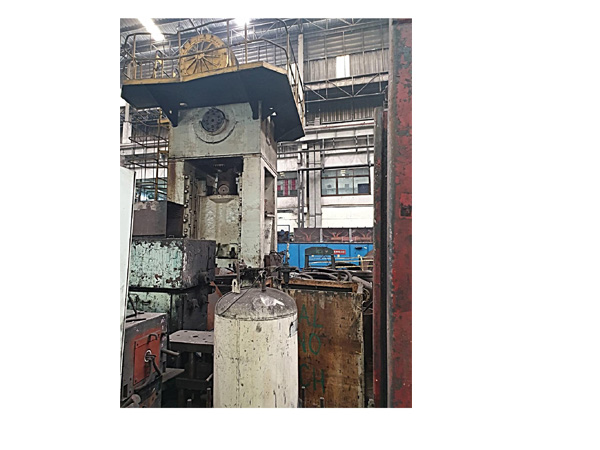

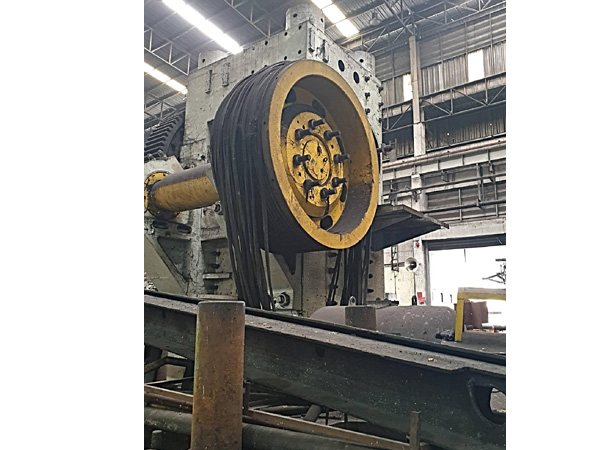

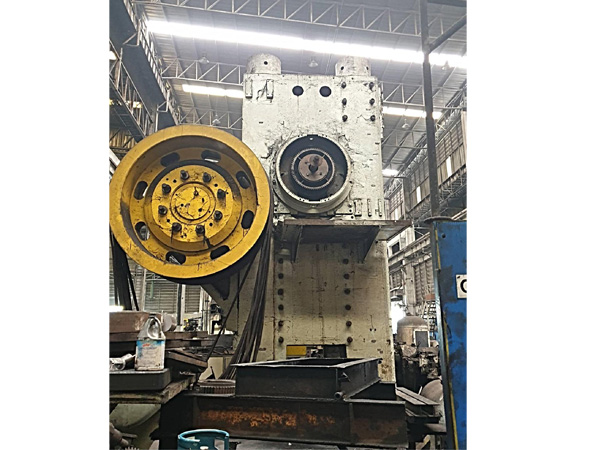

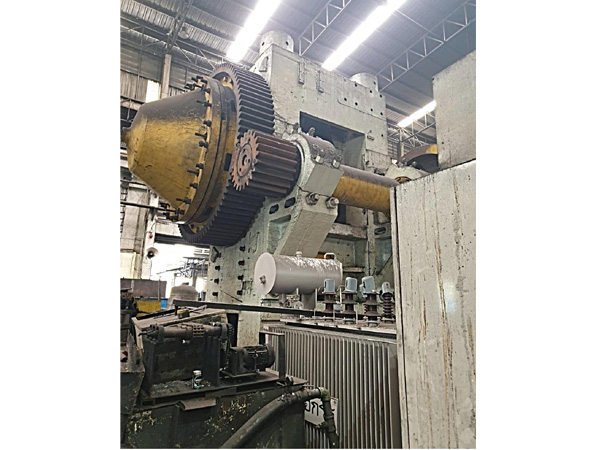

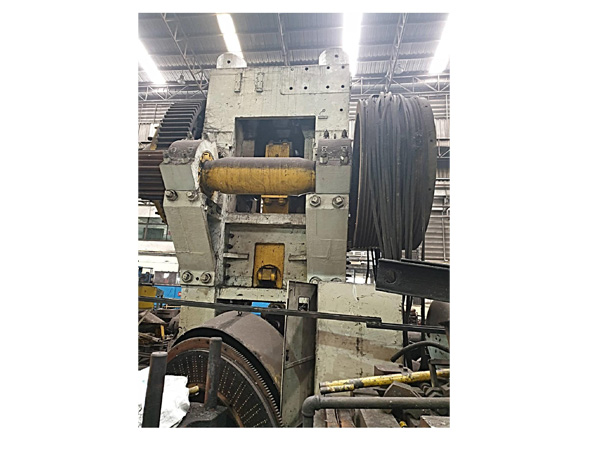

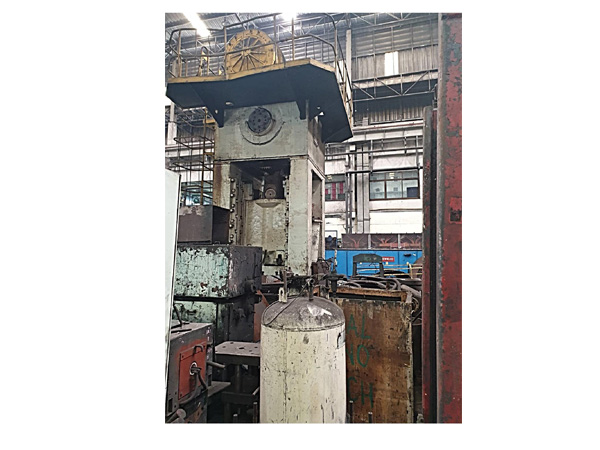

Product Name: 6300 Ton Hot Forging Press Manufacturer: Kramatorsk Model No: K 8548 Machine No: P0097 Technical Details:

Capacity : 6300 ton

Slide stroke : 460 mm

Shut height : 1350 mm

SPM : 11

Bed dimensions (L-R x F-B) : 2100 x 1950 mm

Ram dimension (L-R x F-B) : 1900 x 1680 mm

Upper ejector type : Mechanical

Upper ejector capacity : 12 ton

Upper ejector stroke : 30 mm

Bottom ejector type : Mechanical

Bottom ejector capacity : 16 ton

Bottom ejector stroke : 20 mm

Dimensions of press (W x D x H) : 7970 x 5760

Main drive motor power : 500 kw

Motor : 750 rpm

Total weight of press : 575400 kgs

The Line consists of :

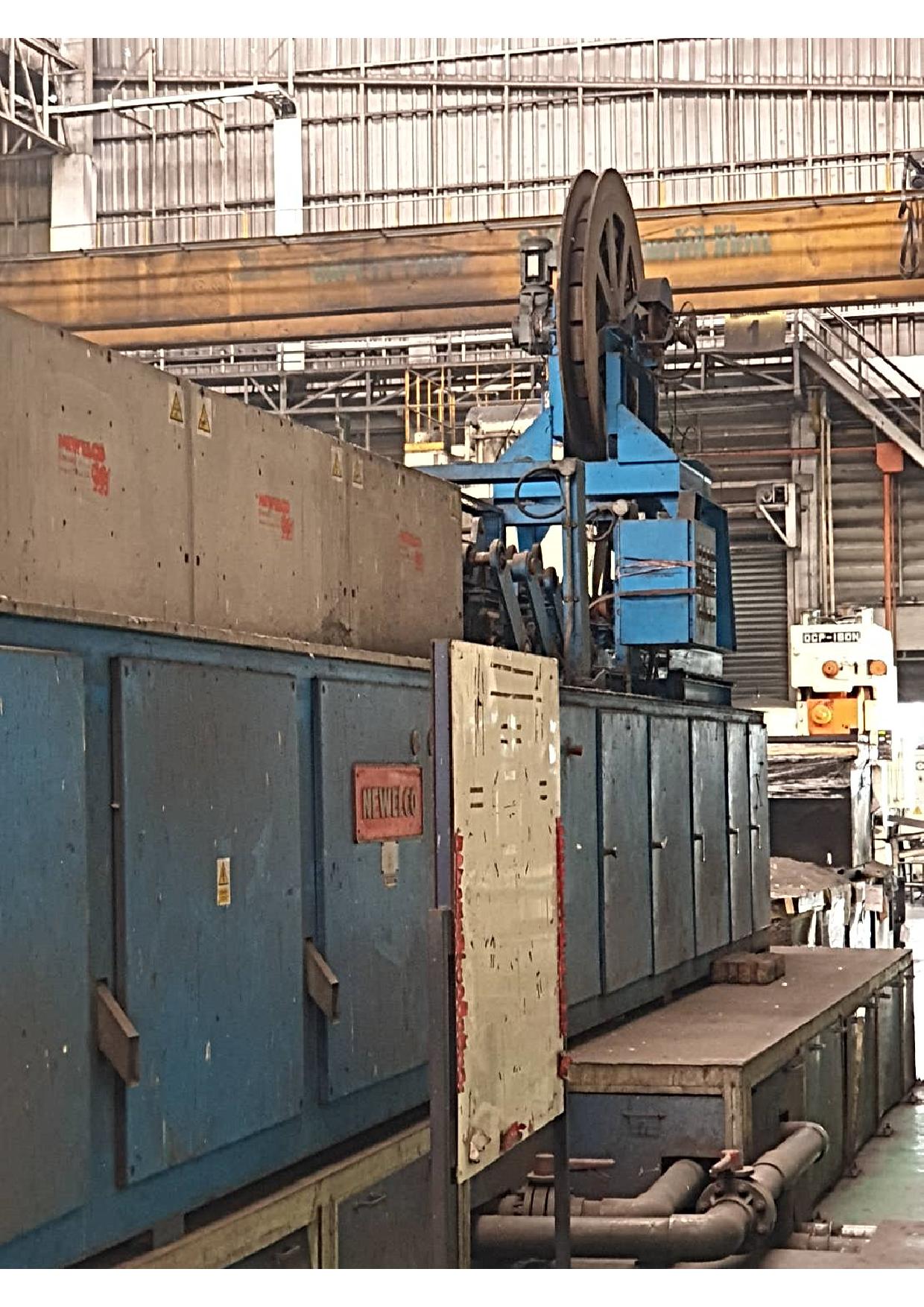

1. BRAND NEW RADYNE NEWELCO 2250 KW INDUCTION BILLET HEATER, MODEL A057, YOM 2005

2. USED VORONEZH 630 TON TRIMMING PRESS, MODEL K 9538, YOM 1977

3. USED SPARE PARTS AVAILABLE
