Product Name: 630 ton Mechanical Trimming press Manufacturer: TMP Model No: K9538 Machine No: P0055 Technical Details:

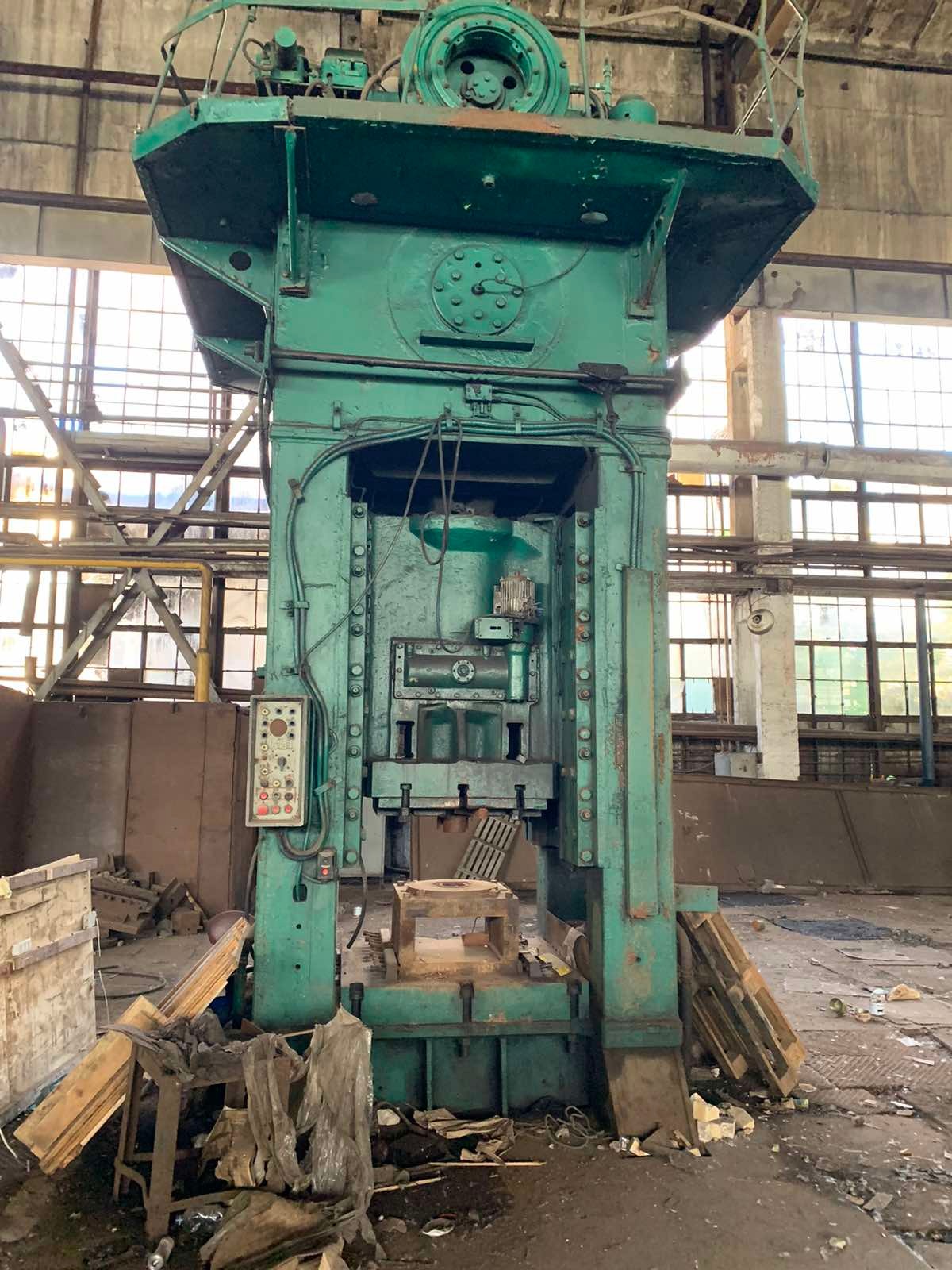

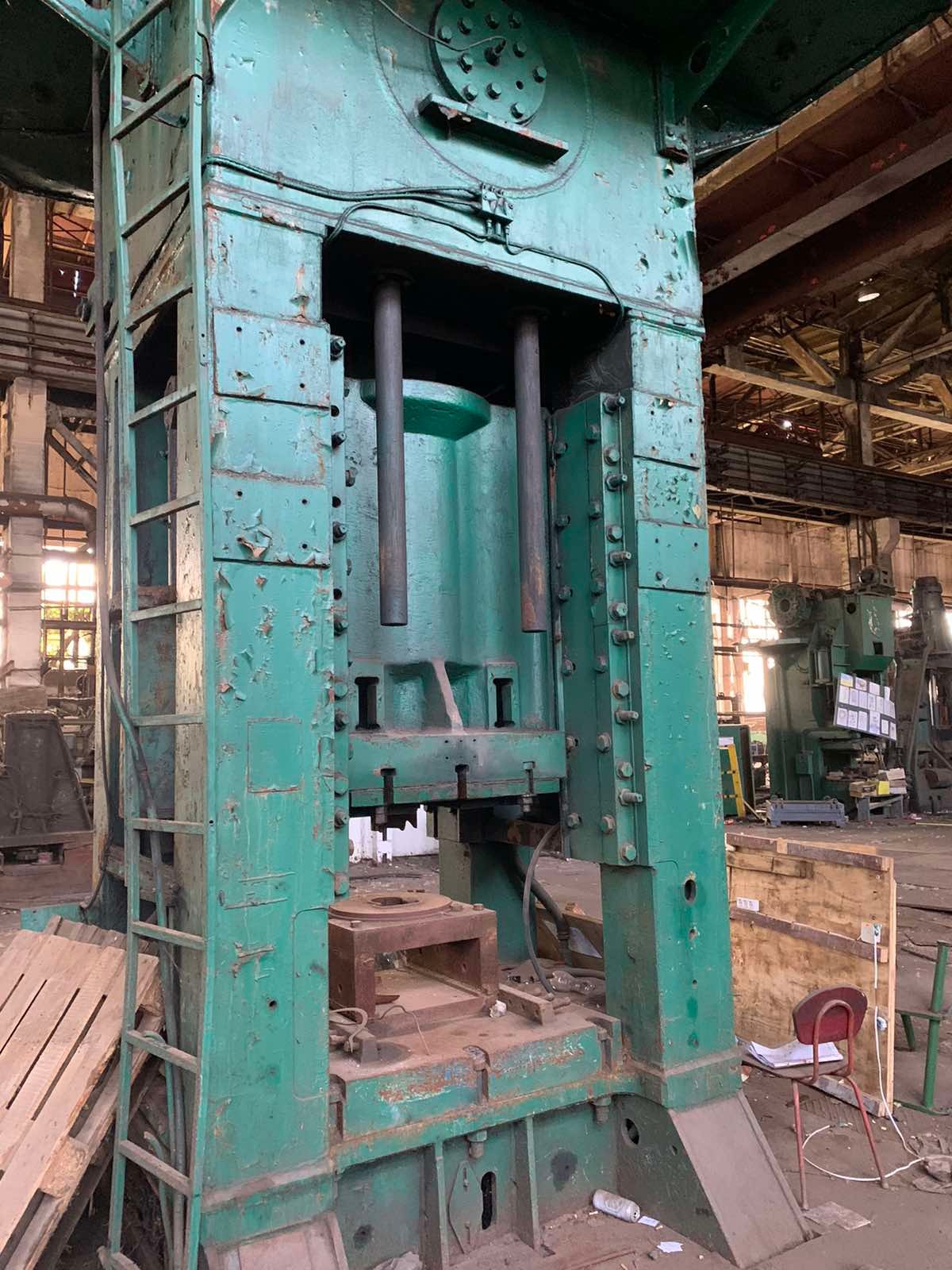

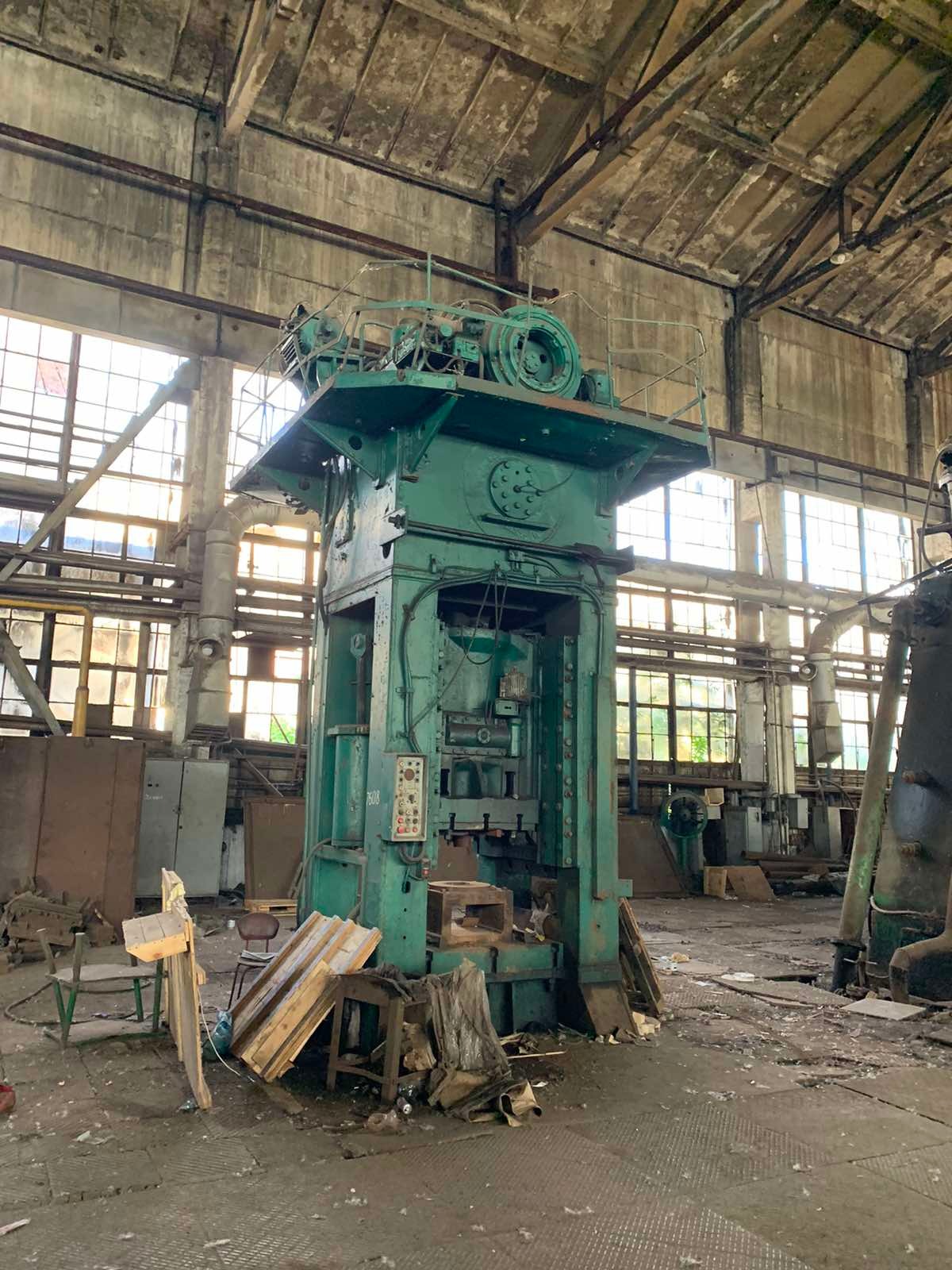

Trimming press TMP Voronezh K9538 - 630 ton

Specification:

Capacity: 630 ton
Slider stroke: 420 mm
Stroke path till its position where it develops nominal capacity: 9,5 mm
Slider strokes, spm: 20
Shut height: 750 mm
Distance adjustment between table and slider: 180 mm
Slider size: 1000 x 1000 mm
Table size: 1250 x 1250 mm
Table gap size: 800 x 800 mm
Window size: 750 x 400 mm
Bolster plate thickness: 180 mm
Ram load: 2000 kg
Motor capacity: 58 kW
Voltage: 340 V
Machine dimensions: 3280 x 3470 x 6190 mm
Machine weight: 49800 kg
