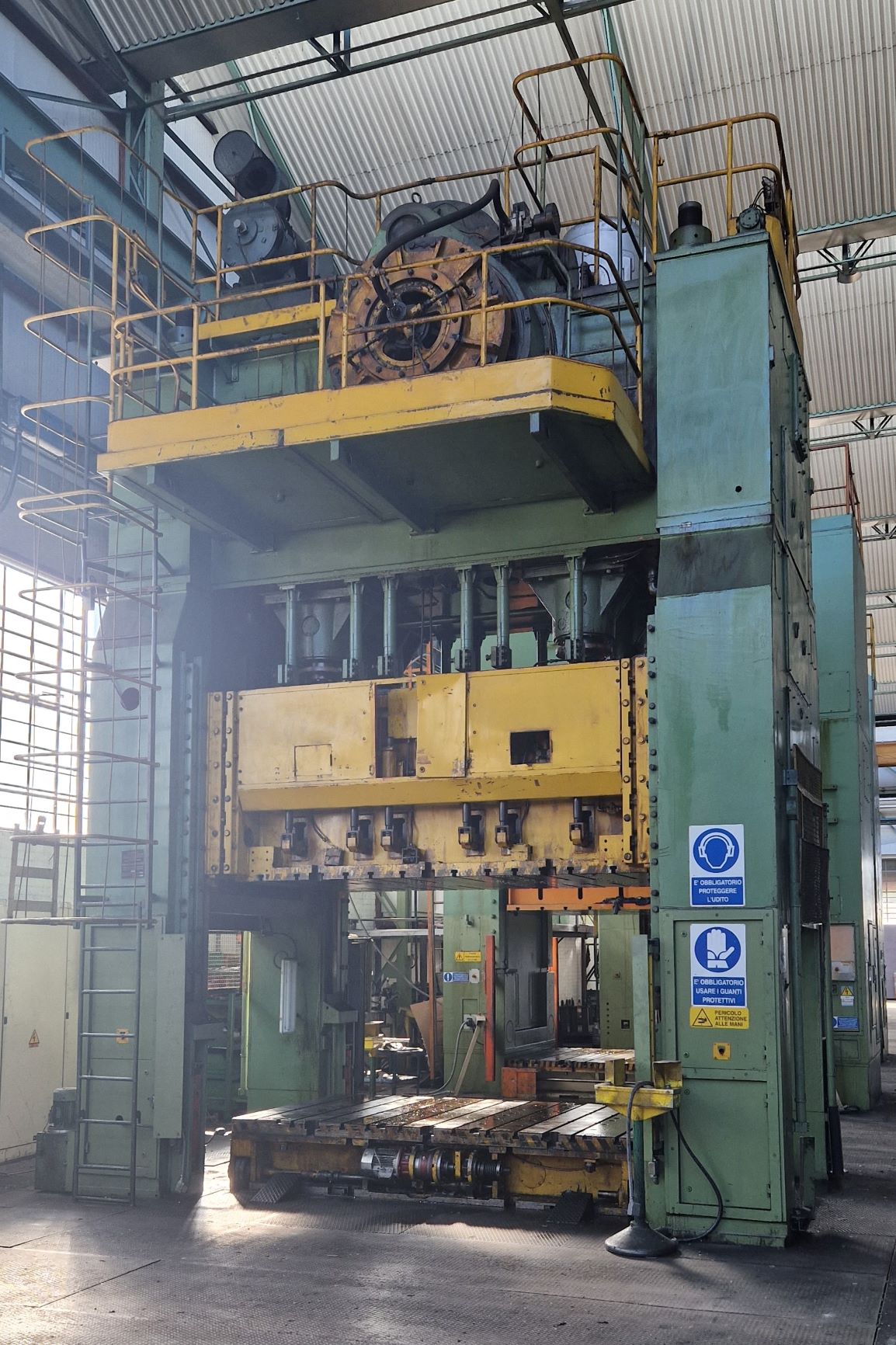

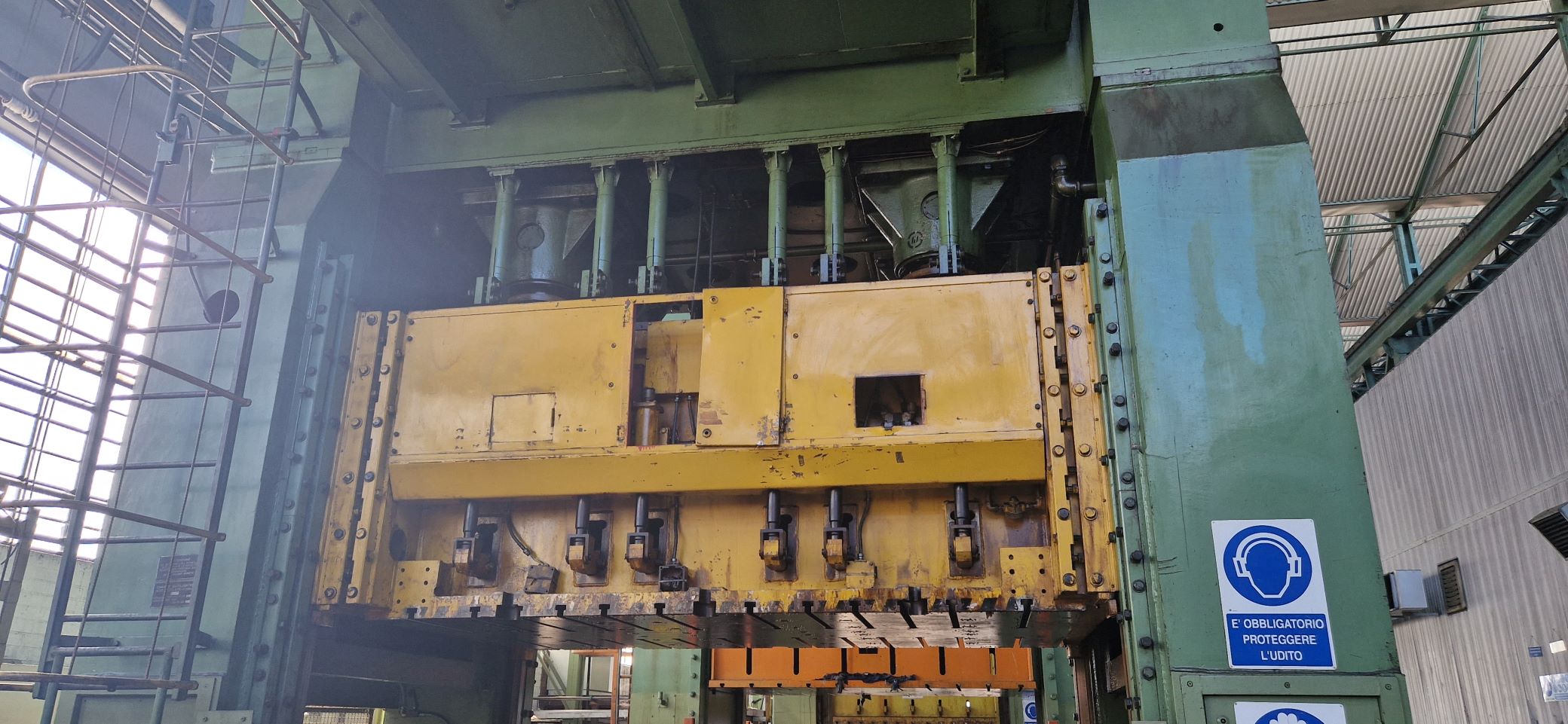

Product Name: 500 Ton Double Crank Mechanical Press Manufacturer: TMP Model No: KA 4537 Machine No: P0046 Technical Details:

Press Power : 500 Ton

Top Board Stroke : 630 mm

Regulation : 500 mm

Distance from the base to up Table : 1230 mm

Front light between the uprights : 3190 mm

Lateral light between the uprights : 1900mm

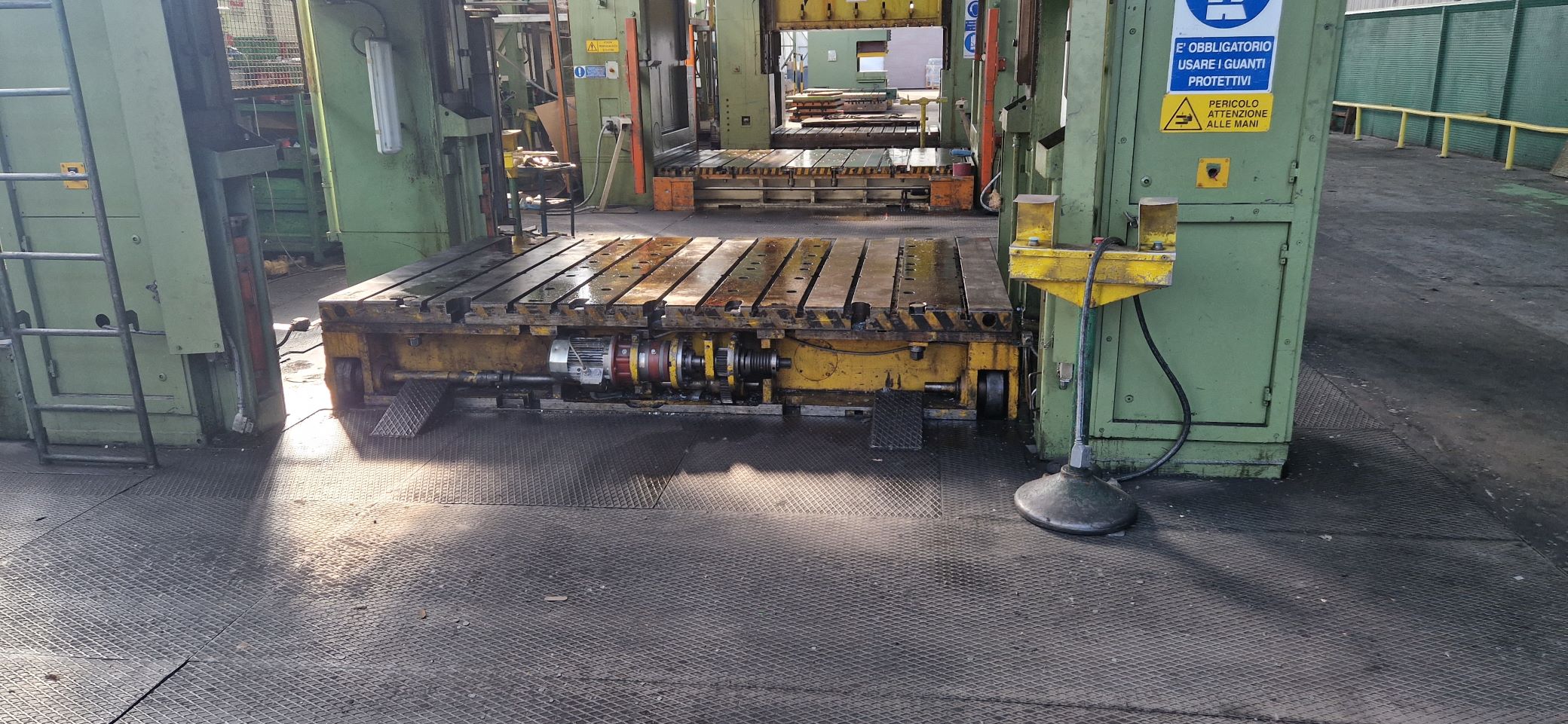

Moving Bolster Dimensions : 3150 X 1800 mm

Step Hole : 100 mm

Upper Table Dimensions : 3100 X 1800 mm

Step Hole : 60 Holes

Lower Cushion Size : 2430 X 1245 mm

Max Power : 8T

Max Stroke : 150 mm

Max Dimensions Size : 5500 X 4550 X 7540 mm ( floor plan)
