Product Name: 450 Ton Double Crank Mechanical Press Manufacturer: USI INNOCENTI Model No: S4-450-132-84 Machine No: P0047 Technical Details:

Press Power : 450 Ton

Top Board Stroke : 610 mm

Regulation : 203 mm

Distance from the base to up Table : 1829 mm

Front light between the uprights : 3404 mm

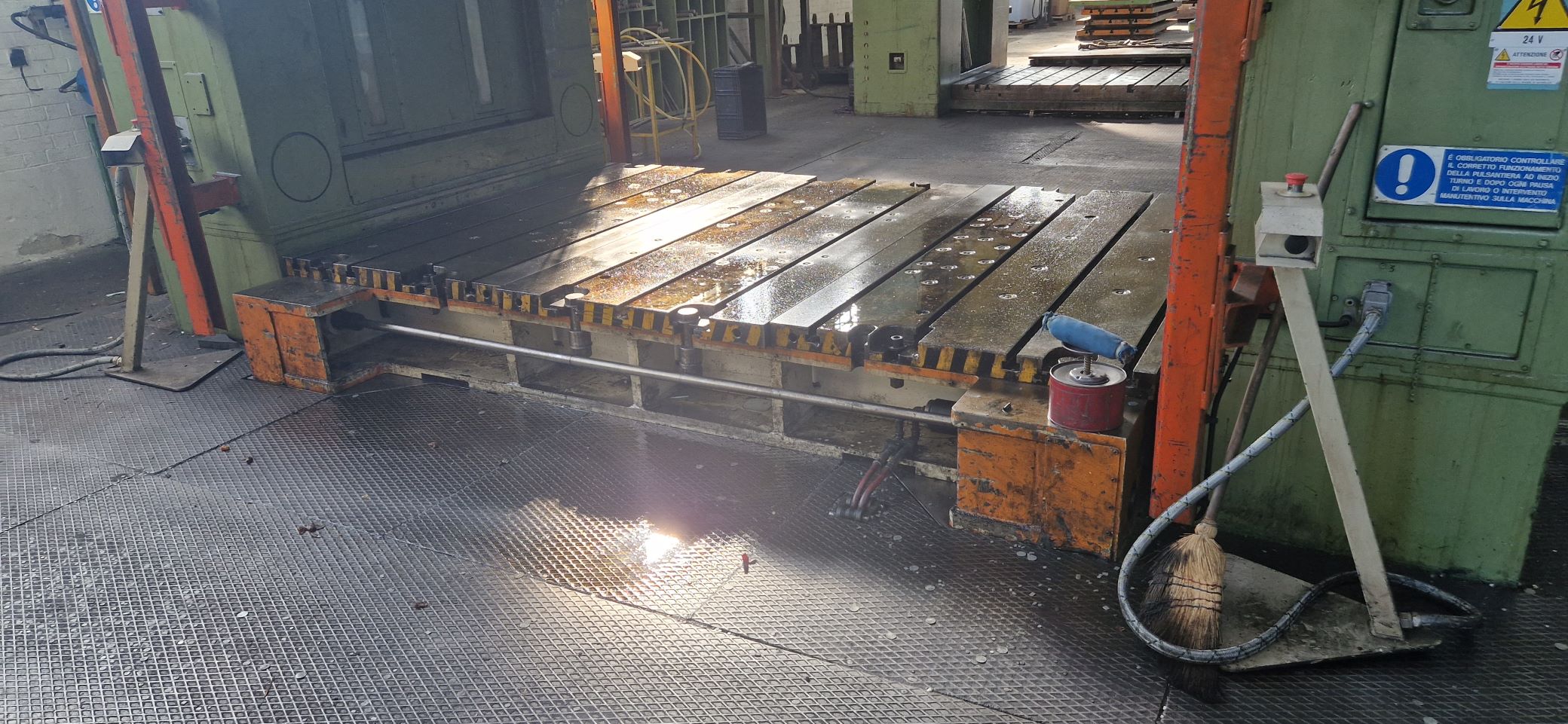

Lower Table Dimensions : 3350 X 2134 mm

Step Hole : 100 mm

Upper Table Dimensions : 3350 X 2134 mm

Max Power : 84 T

Max Stroke : 305 mm

Max Dimensions Size : 5030 X 2584 X 7367 mm ( from floor plan)
