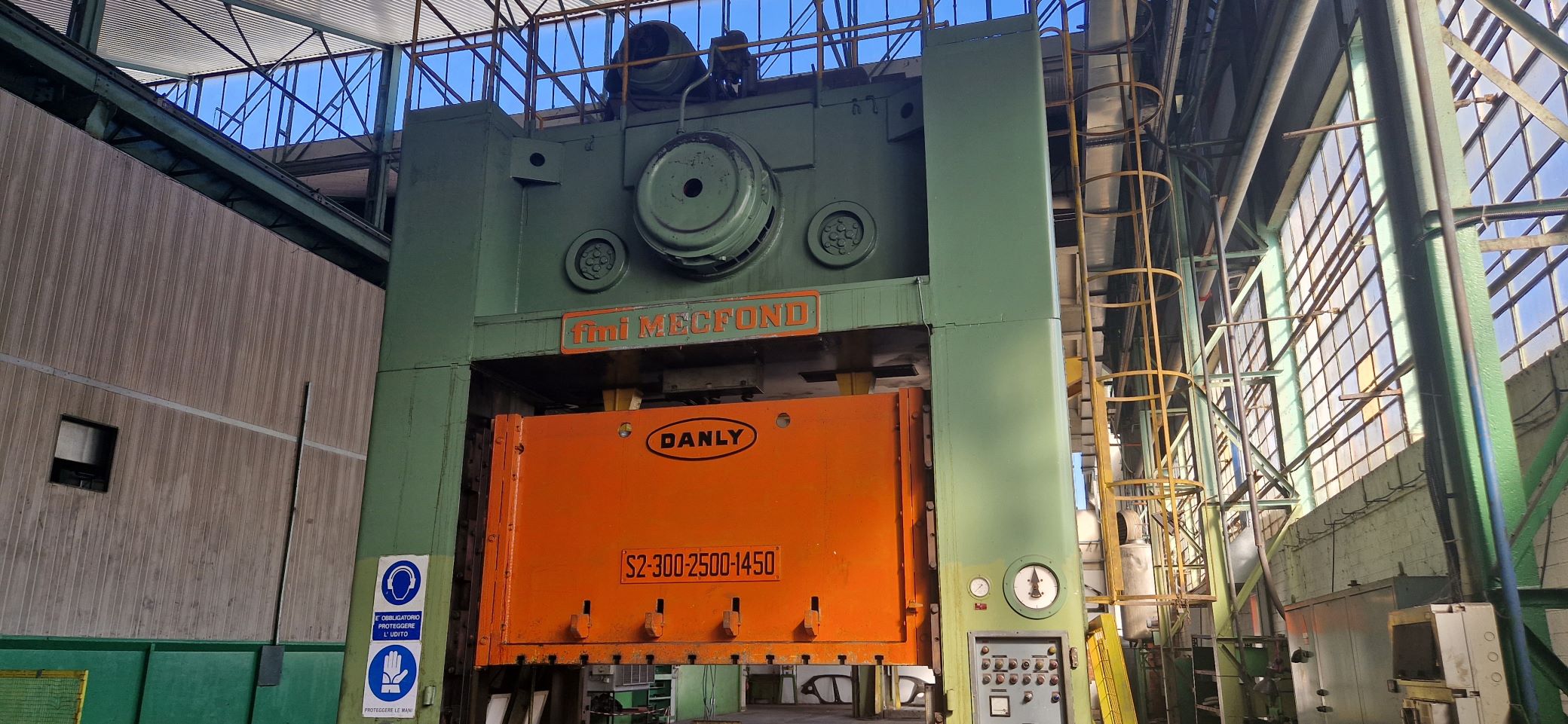

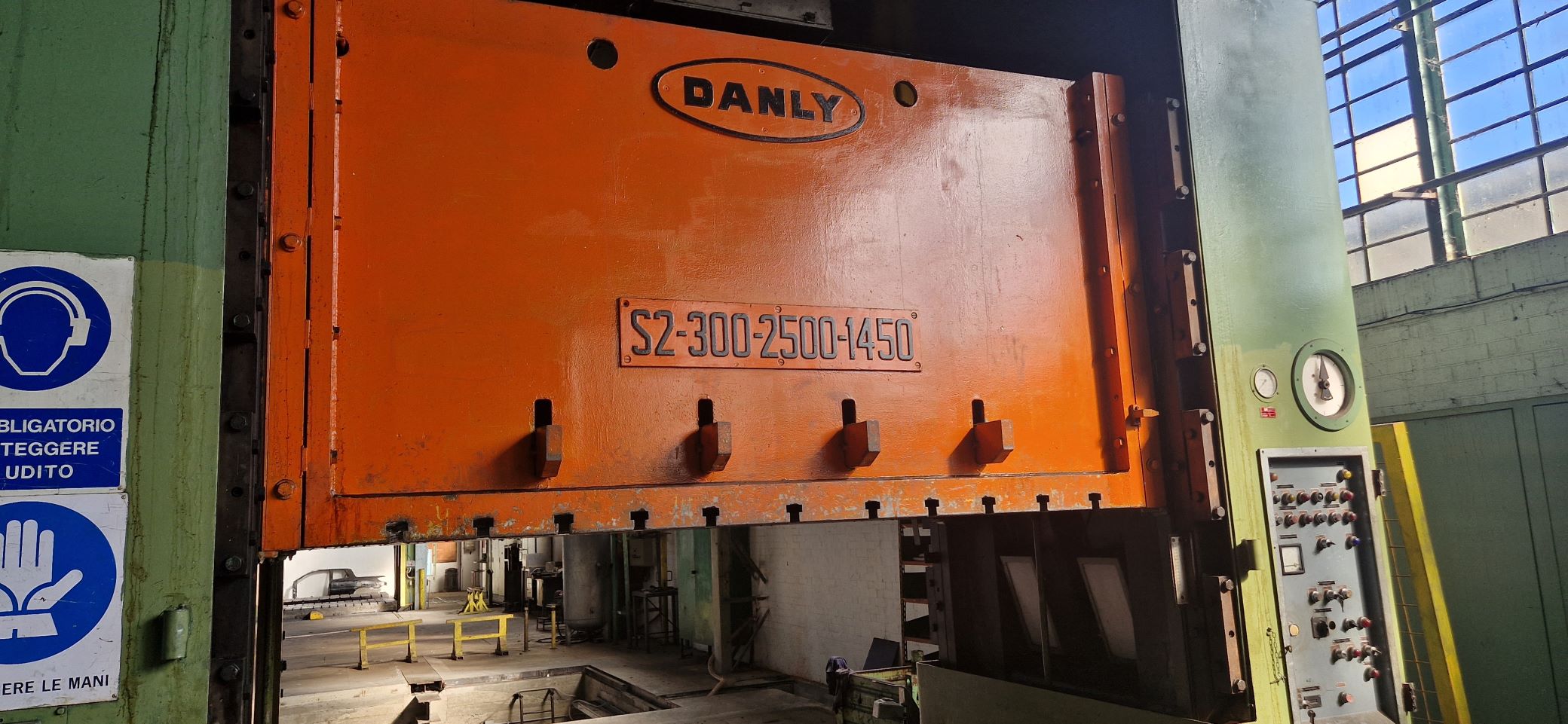

Product Name: 300 Ton Double Crank Mechanical Press Manufacturer: MECFOND Model No: TIPO S2-300-2500X1450 Machine No: P0044 Technical Details:

Press Power : 300 Ton

Top Board Stroke : 450 mm

Regulation : 150 mm

Distance from the base to up Table : 850 mm

Light between the uprights : 2550 mm

Lower Table Dimensions : 2500 X 1450 mm

Step Hole : 100 mm

Upper Table Dimensions : 2500 X 1450 mm

Lower Cushion Type : 28-30-200

Max Power : 64 T

Max Stroke : 200 mm

Lower Cushion Size : 2160 X 1130 mm

Max Dimensions Size : 4200 X 2080 X 6375 mm ( from floor plan)
