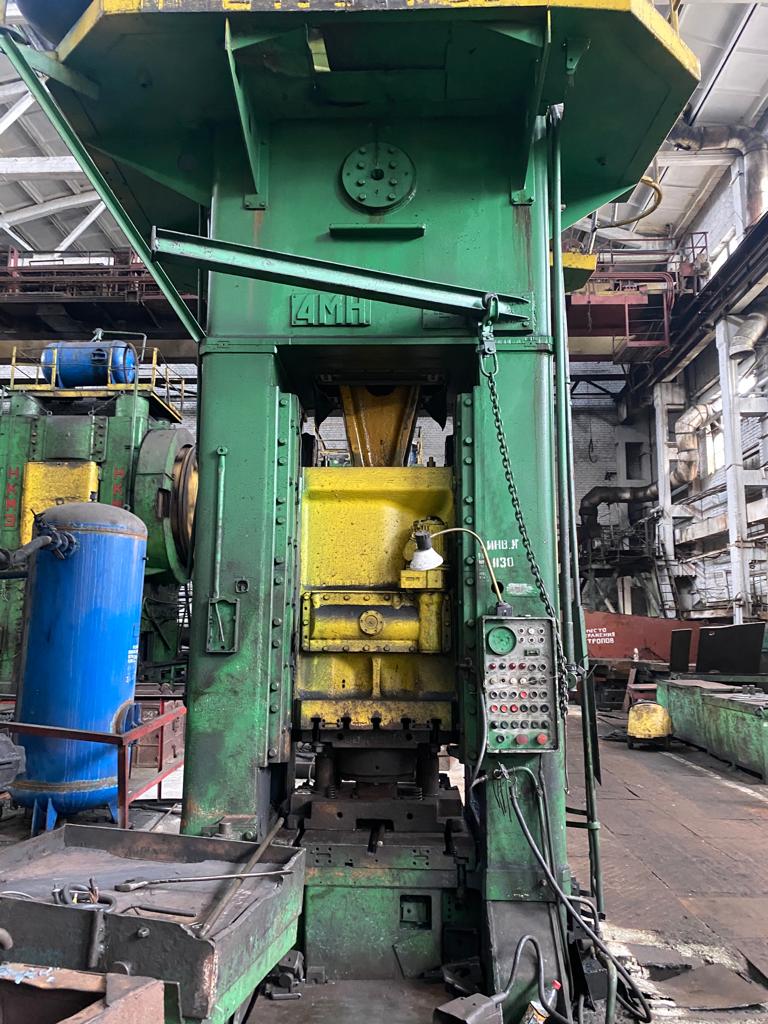

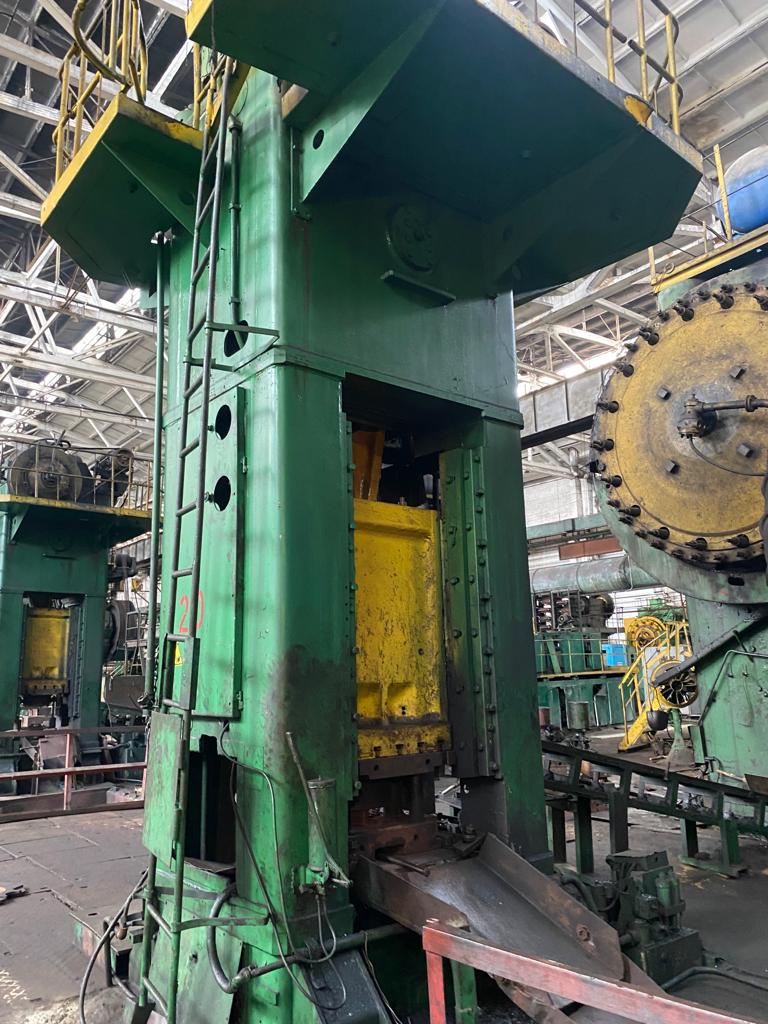

Product Name: RUSSIAN 400 ton Trimming press Manufacturer: BARNAUL Model No: KB 9536 Machine No: P253 Technical Details:

Rated force : 400 tons

Slider stroke : 360 mm

Min. distance between table and slide : 6 mm

Number of strokes min-1 :  27

Number of the single cut-in min-1 : 19

Maximum distance between table and slider (in lower position of slider) : 470 mm

Size of adjustment of distance between down-stamp a plate and slider : 160 mm

Table overall dimensions :

- From left to right : 1000 mm

- From front to rear : 1000 mm

- Height : 160 mm

Slider overall dimensions : 800 x 800 mm

Hole in the table : 630 x 630 mm

Window in rack : 700 x 550 mm

Main motor power:  45 kW

Max. working strokes of hydro-air-cushion : 100 mm

Max. force of pushing out : 12 tons

Hydro-air-cushion :

- Max. working course : 100 mm

- Max. force of pushing out : 12 tons

- Max. force of a clip : 63 tons

Press overall dimensions : 2900 x 3100 x 5580 mm

Press weight : 34000 kg
