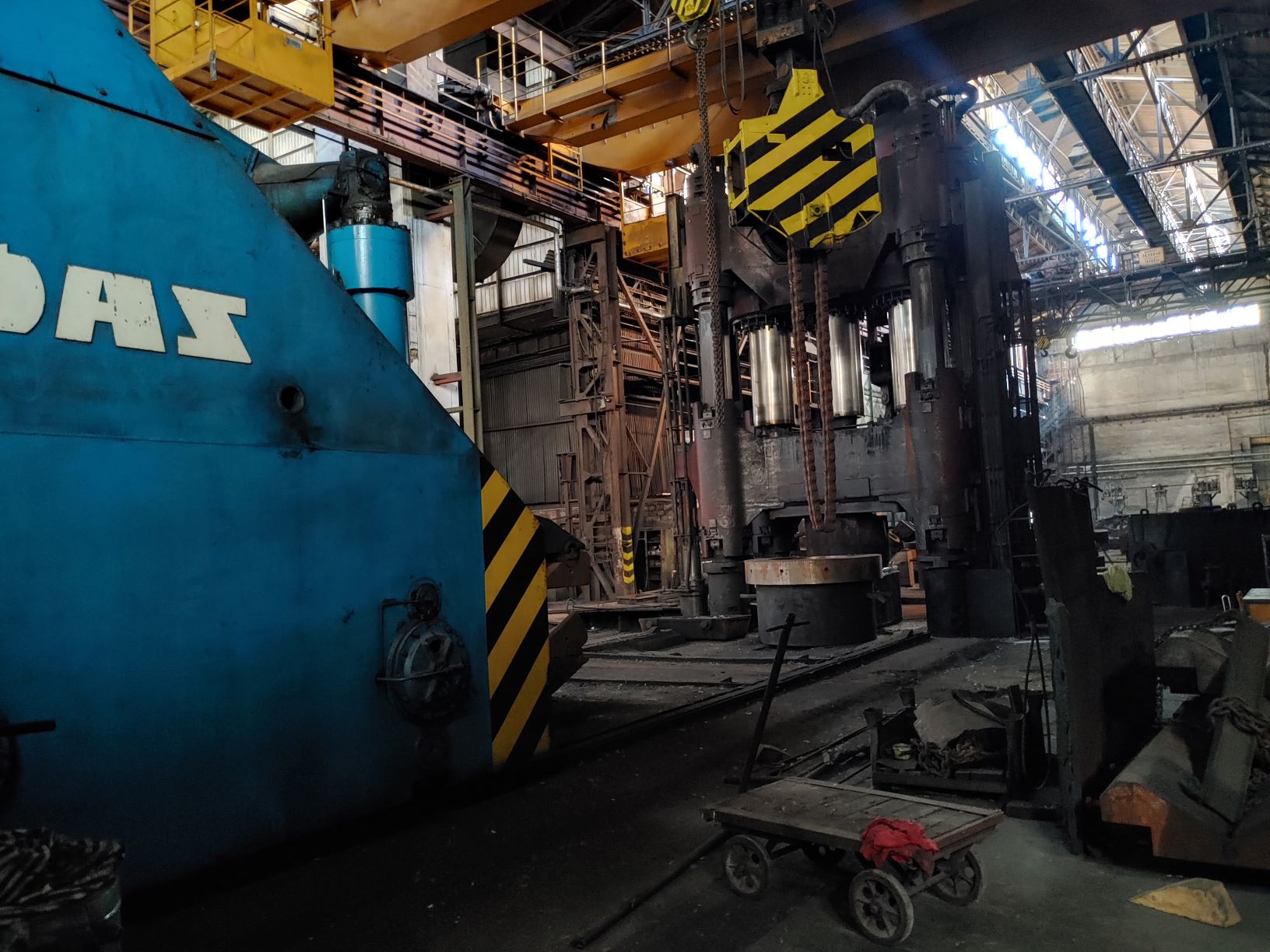

Product Name: 3000 Ton Open Die Forging Press with 35 ton Manipulator Manufacturer: SKODA Model No: CKV2650 Machine No: P009 Technical Details:

Ingot weight: min.3 – max.40ton

Maximal forging dimension: max. length  13 000mm, max. diam. 2 450mm

Nominal power I.,II.,III  stage: 11/22/33 MN

Working pressure of oil: 20 - 25Mpa

Working pressure of oil control: 15MPa

Oil working temperature: 50°C

Press stroke: 1800mm

Press headroom: 3800mm

Moving velocity: 300mm/sec

Pressing velocity I.stage: 150mm/sec

Pressing velocity II.stage: 75mm/sec

Pressing velocity III.stage: 50mm/sec

Lift quantity by smoothen 15 – 25mm: 80 min^-1 ±10%

Quantity and pressure air supply: 500Nm³, 0,6Mpa

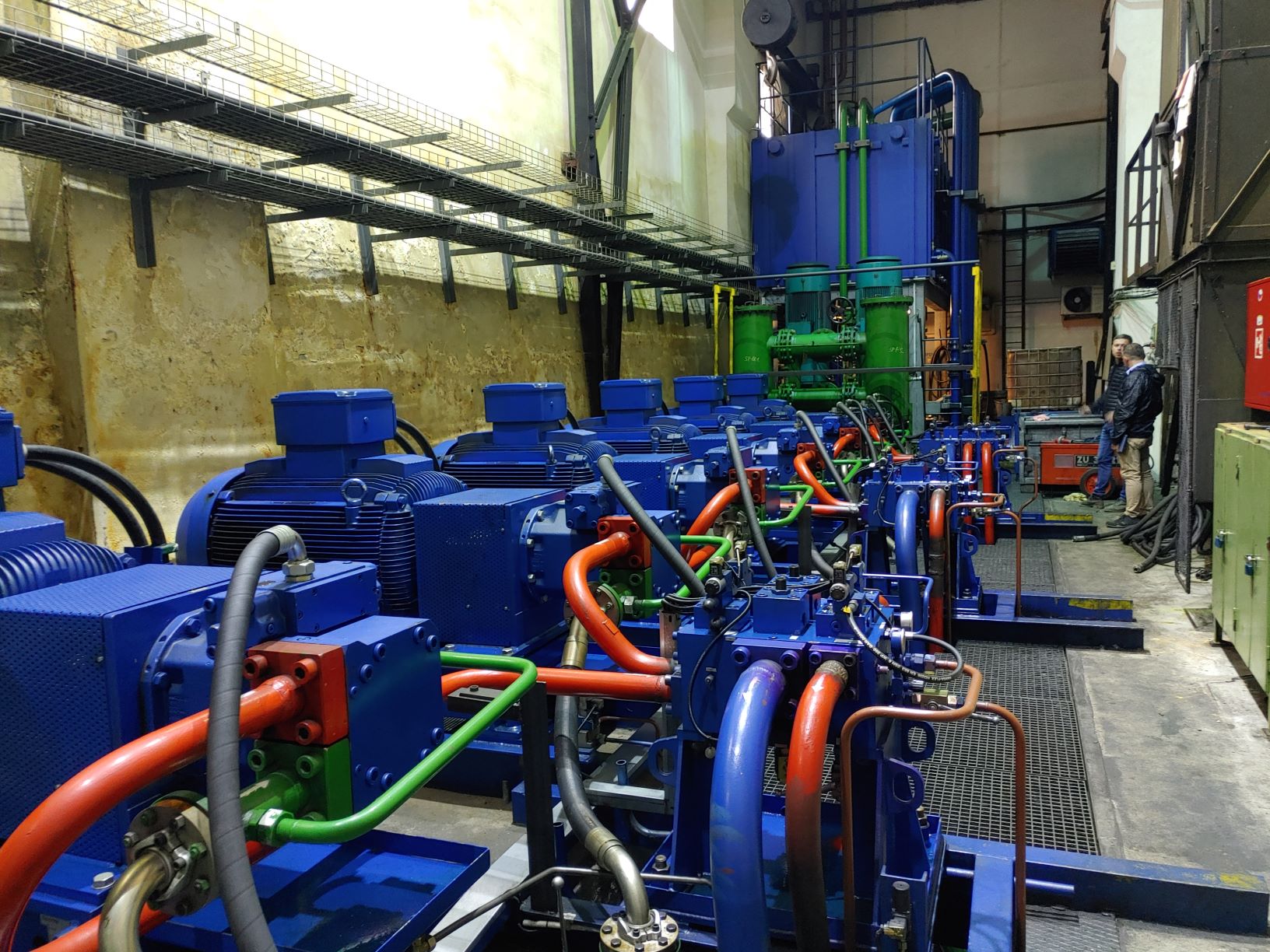

Total electrical installation: 2470kW

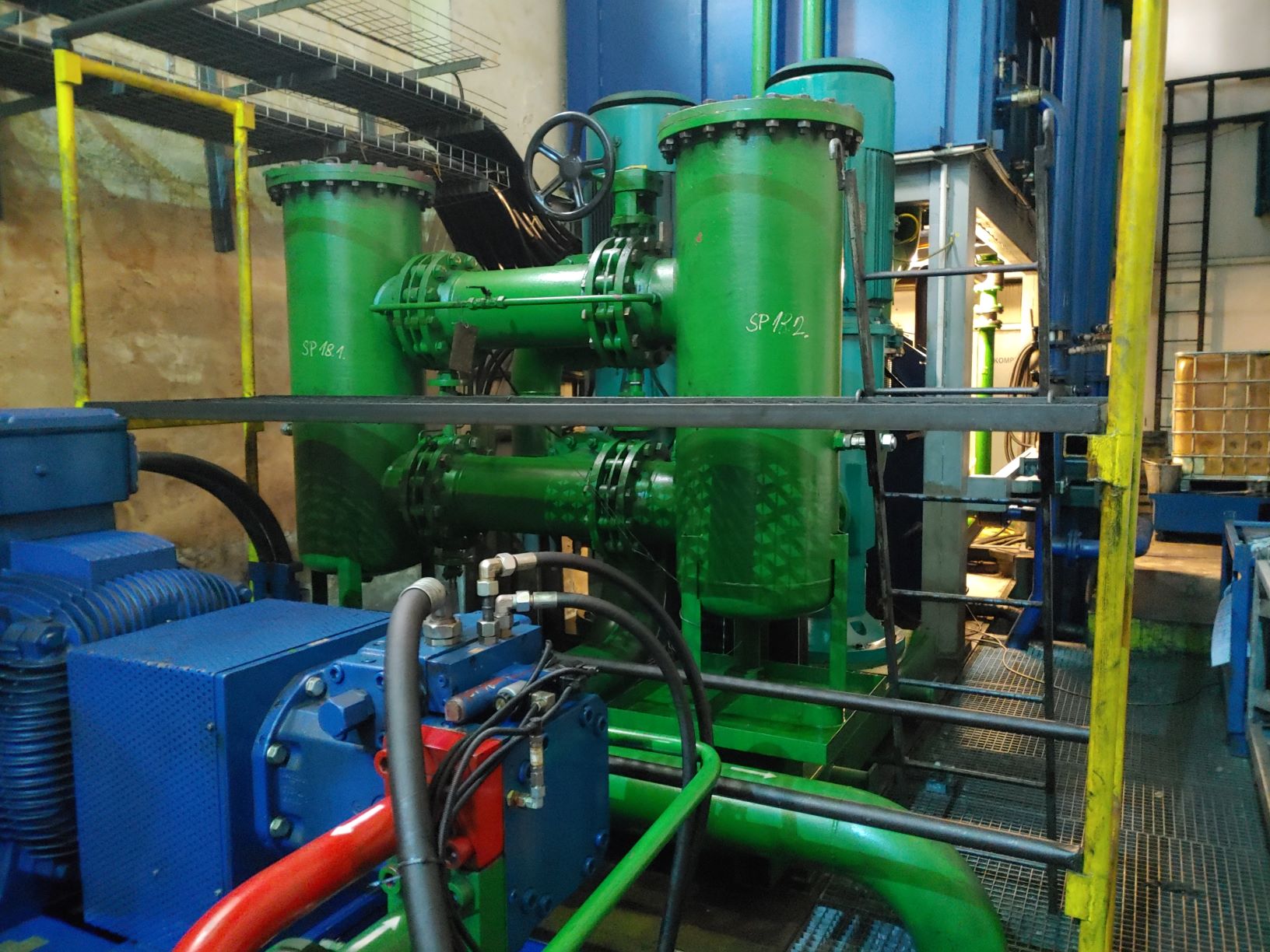

Oil tank volume: 30m³

Press high: above the base 8 945mm, 3 880mm under the base

Weight of device: 611 tons

Technical description: free forging – crankshaft, rotors, windmill shaft, rolls, bars

Condition: functional

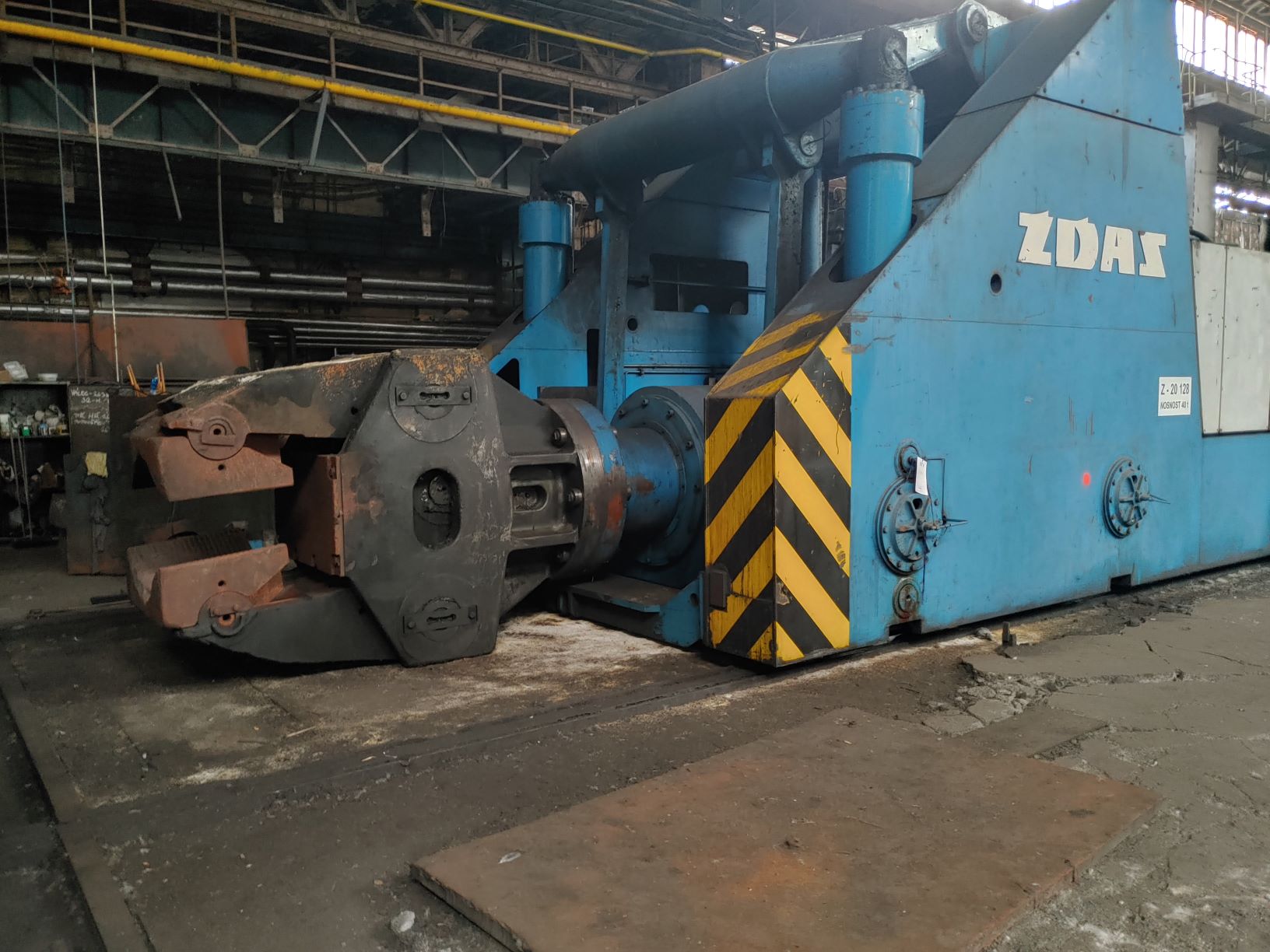

 Manipulator

Man : ZDAS
Loading capacity : 40 Ton.

Toggle moment: 80kNm

Min. gripping diam.: 310mm

Max. gripping diam.: 1 600mm

Min. high axis tongs: 950mm

Max. high axis tongs: 2 350mm

Upward tilting: 8°

Down tilting: base

Velocity vertical lift: 110mm/sec

Tongs transverse move: ±150mm

Max. tongs rotation: 12min^-1

Max. velocity: 40m/min

Rails distance: 4 000mm

Precision catch teh product: ±5mm

Electrical installation: 180kW

Weight of device: 132 tons
