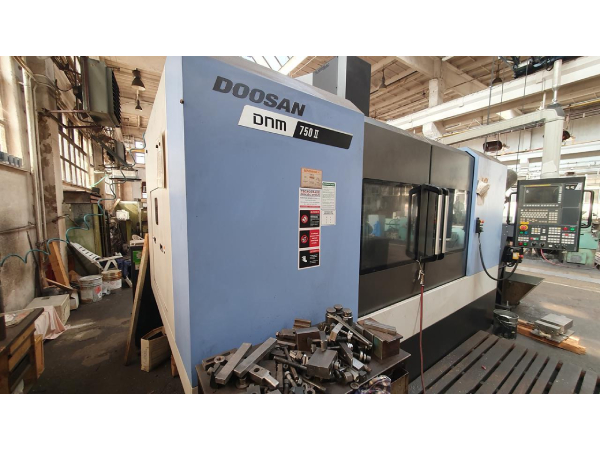

Product Name: Doosan DNM 750 II Manufacturer: Doosan Model No: DNM 750 II Machine No: P018 Technical Details:

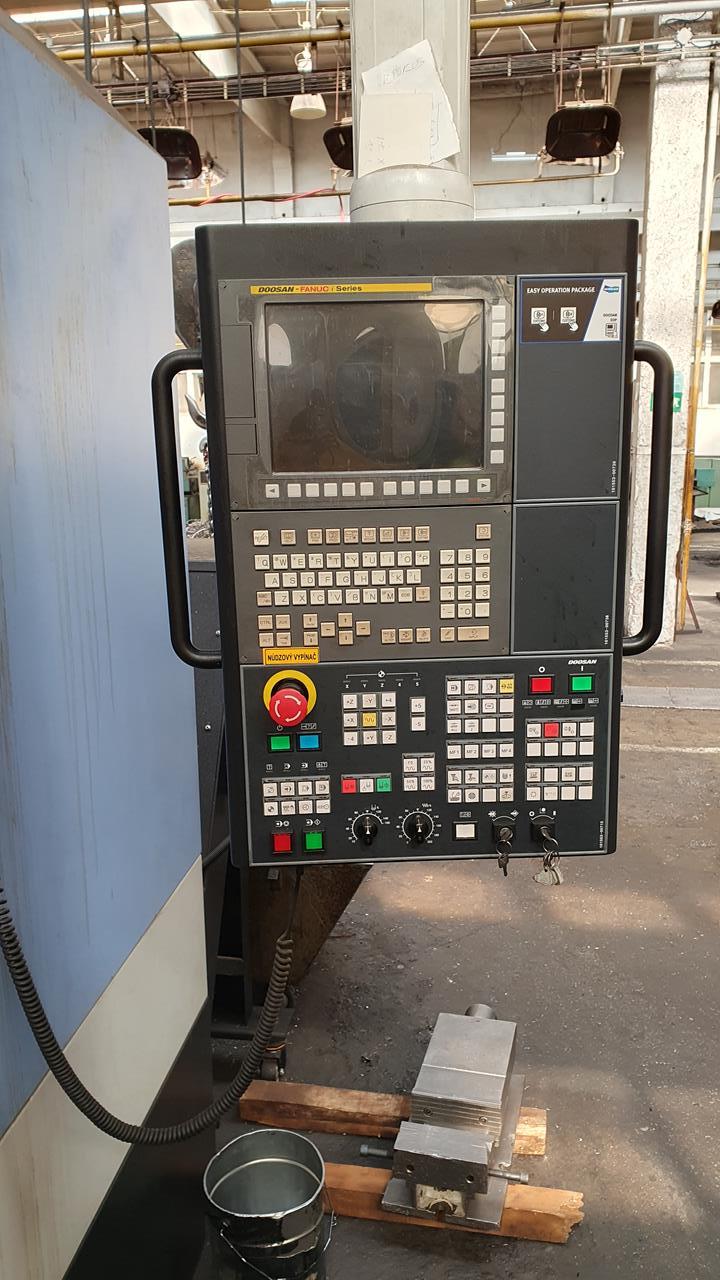

Control system: Fanuc i-series
Hours on: 1000 h
Length of the working table: 1630 mm
Width of the working table: 760 mm
Maximum table load (evenly distributed): 1500 kg
Maximum rotary speed of the vertical spindle: 8000 1/min
X-Axis travels: 1630 mm
Y-Axis travels: 762 mm
Z-Axis travels: 650 mm
Maximum feed rate in X-axis: 12000 mm/min
Maximum feed rate in Y-axis: 12000 mm/min
Maximum feed rate in Z-axis: 12000 mm/min
Power of the spindle: 15 kW
Taper: ISO 40
Rapid traverse X/Y/Z: 30/30/24 m/min
Maximum tool diameter: 80/125 mm
Max. tool weight: 8 kg
Max. tool length: 300 mm
Machine height: 3170 mm
Machine length: 3850 mm
Machine width: 3435 mm
Machine weight: 13500 kg
