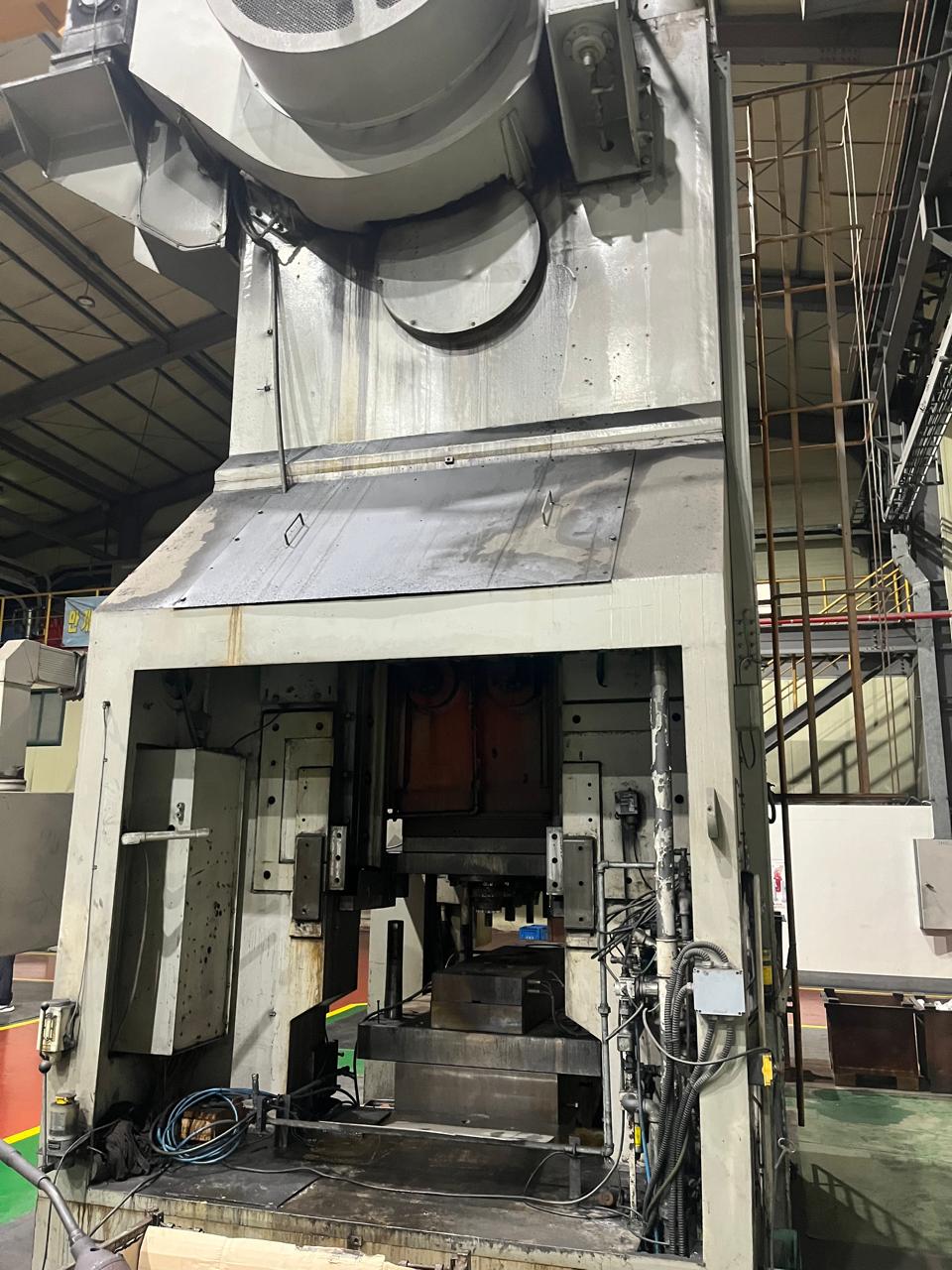

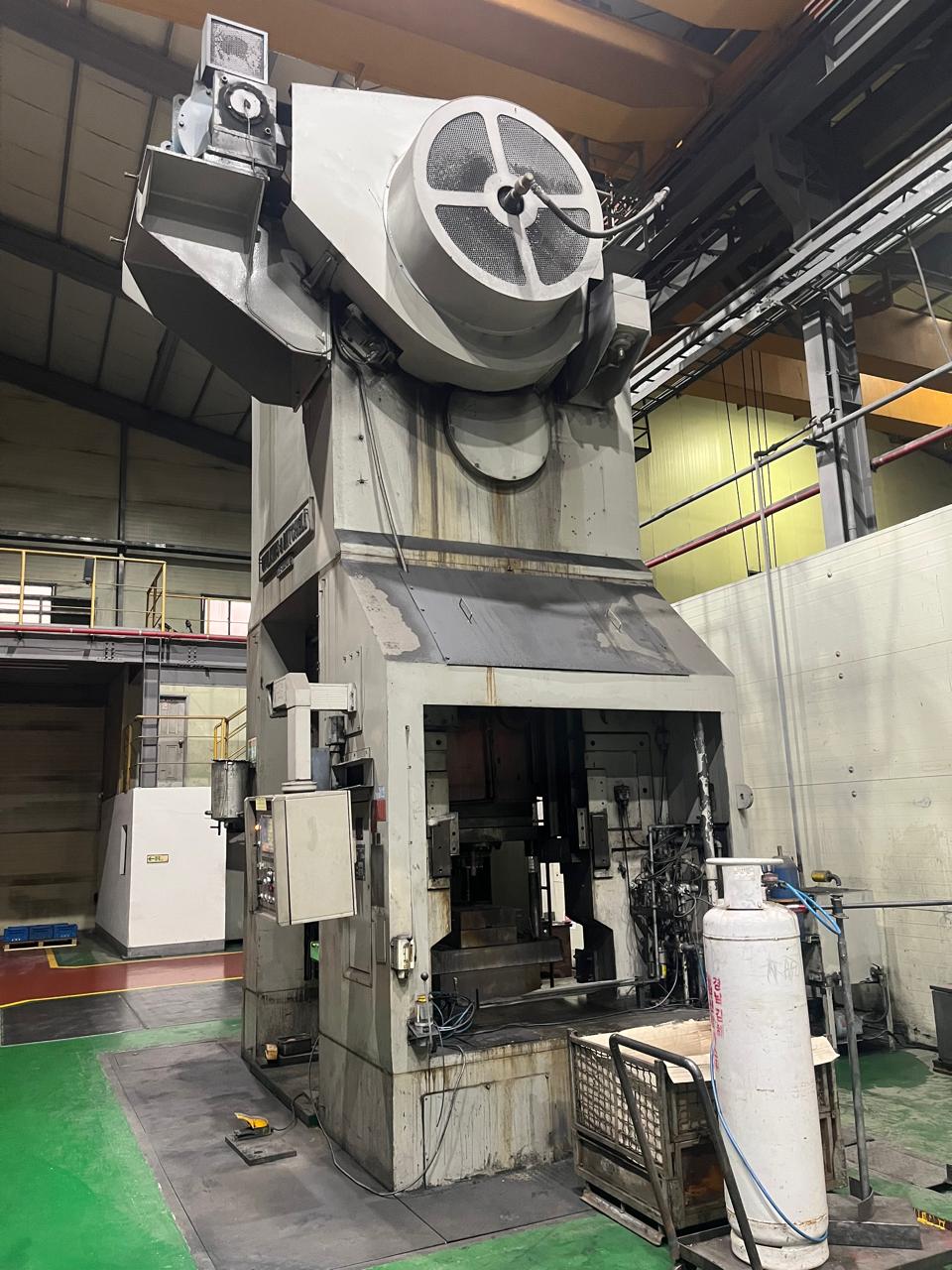

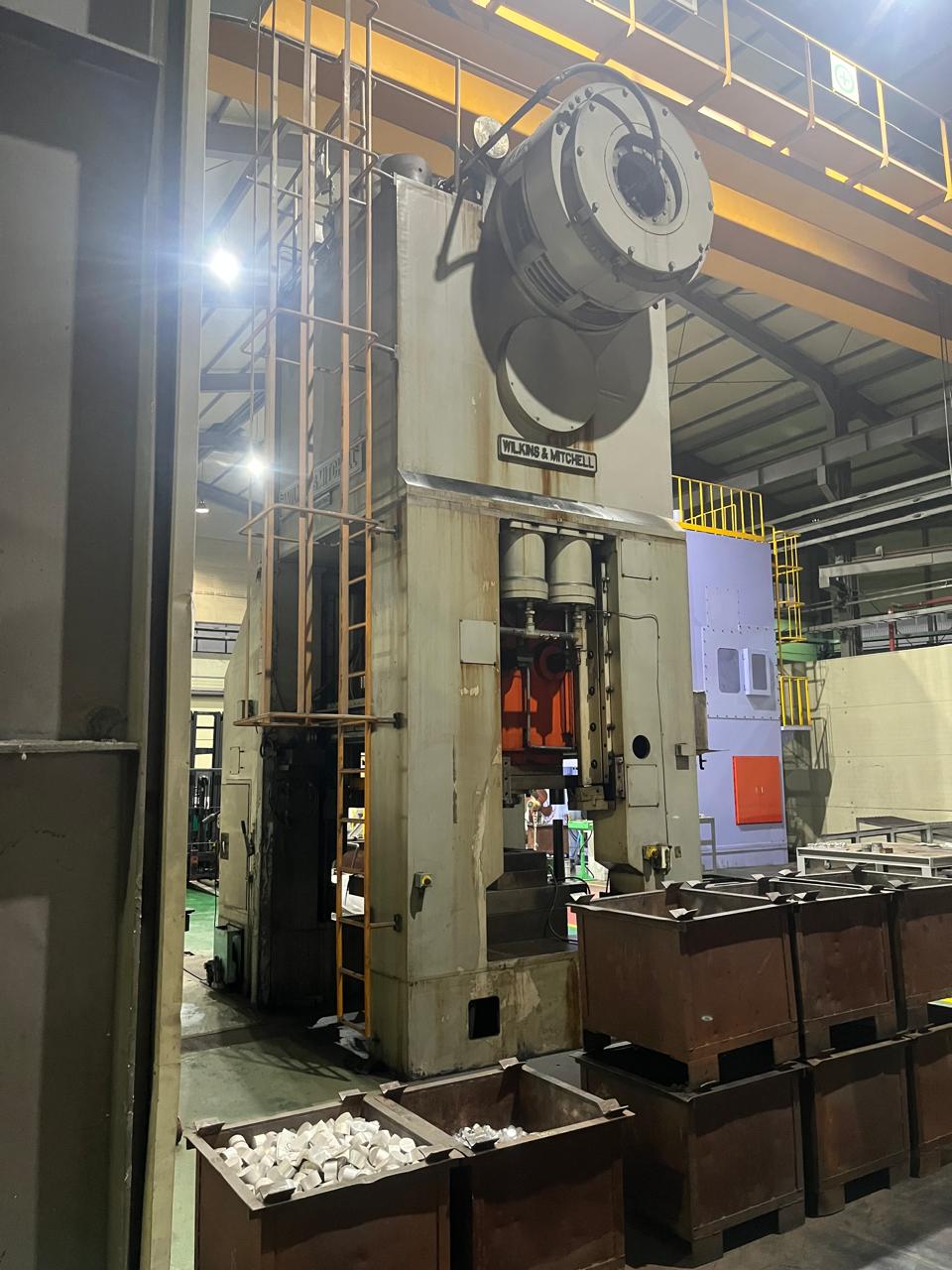

Product Name: 1000T Wilkins & Mitchell Transfer Cold Forging Press
Manufacturer: South Korea
Model No: 1000T Wilkins & Mitchell
Machine No: P0005
Technical Details:
Technical specifications
- Press Capacity: 1000 tons
- Stroke: 300 (mm)
- Strokes Per Minute: 20-35 Variable
- Max Shut Height: 412.5 (mm)
- Slide Adjustment: 12.5(mm)
- Slide L- R: 1725(mm)
- Slide F-B : 750(mm)
- Bolster L- R:1625(mm)
- Bolster F-B : 750(mm)
- Bolster Thickness: 250(mm)
- Bolster Height From Floor Level:750(mm)
- Feed Height : 250(mm) Above Bolster
- Cushion Capacity : 90 tons
- Cushion Stroke : 100(mm)
- Platen L- R: 1525 (mm)
- Platen F - B : 350 (mm)
- Press Height Above Floor: 6825 mm
- Transfer Stroke : 400 (mm)
- Gripper Stroke : 75(mm)
