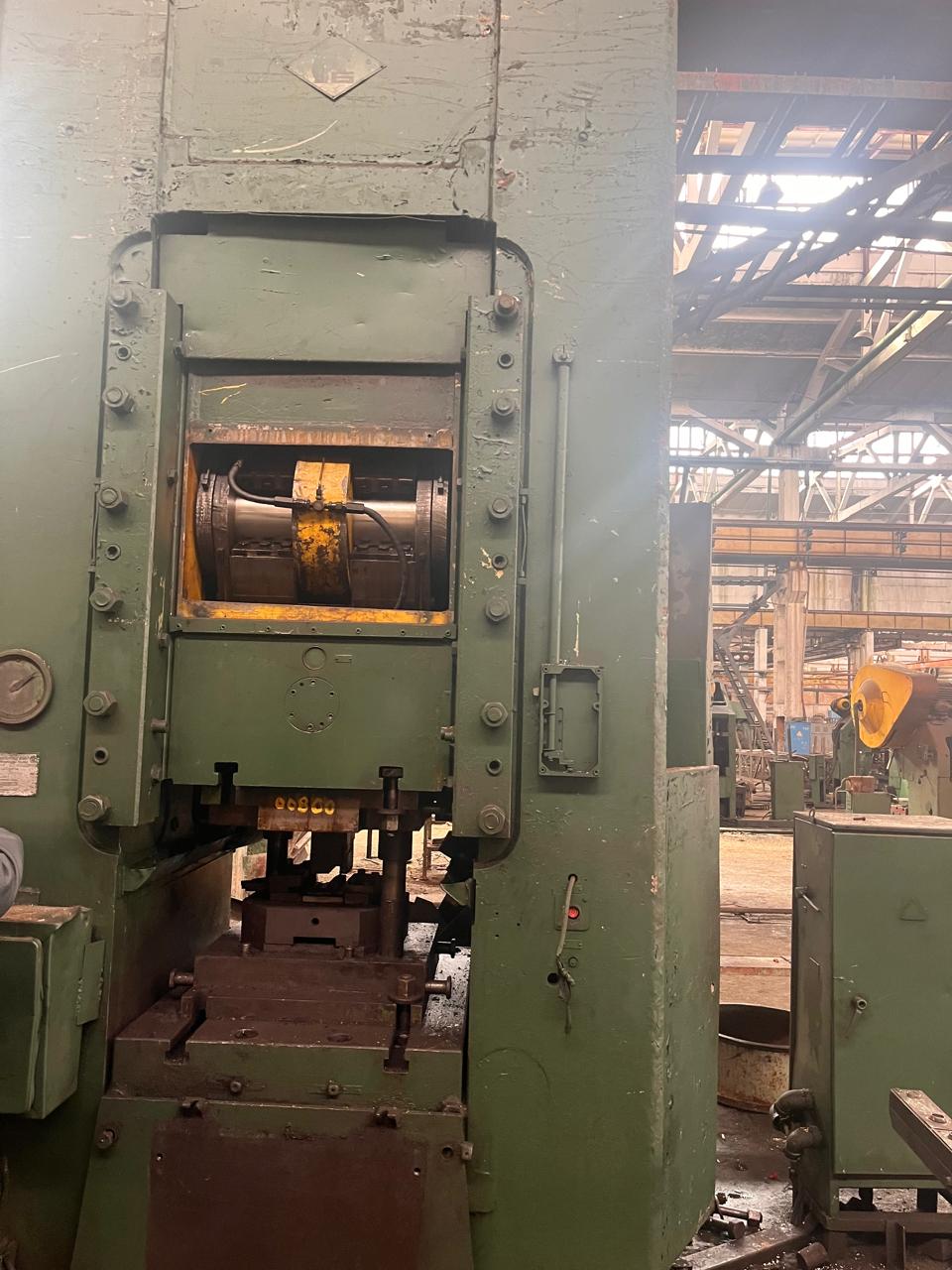

Product Name: 1000T Knuckle Joint Coining Press Manufacturer: Barnaul Russia Model No: KB 8340 Machine No: P000015 Technical Details:

Technical Specification

Capacity : 1000 ton
Ram stroke : 170 mm
SPM : 32
Shut height : 470 mm
Bolster plate-to-ram adjustable stroke : 16 mm
Bed dimensions : 800 x 800 mm
Bolster plate thickness : 140 mm
Main drive motor power : 40 kw
Dimensions of the press (L x W x H) : 3060 x 1730 x 3830 mm
Mass : 26 ton
